Enhancing manufacturing precision through expert leveling and internal stress release systems by XINLIJIN.
Overcoming Material Distortions in Modern Fabrication
In the competitive landscape of metalworking, precision is not just an advantage; it is a necessity. Manufacturers often face significant challenges such as coil set, crossbow, and hidden internal stresses that compromise the quality of laser cutting, welding, and final assembly. These distortions lead to increased scrap rates, machine downtime, and higher operational costs.
Are you struggling with inconsistent material flatness that hinders your automated production lines? The solution lies in integrating a high-performance Straightener Machine designed to neutralize these physical defects. This guide explores how advanced leveling technology provides a definitive roadmap to achieving superior surface quality and dimensional stability.
What you will learn in this article:
The fundamental physics of industrial leveling and stress relief.

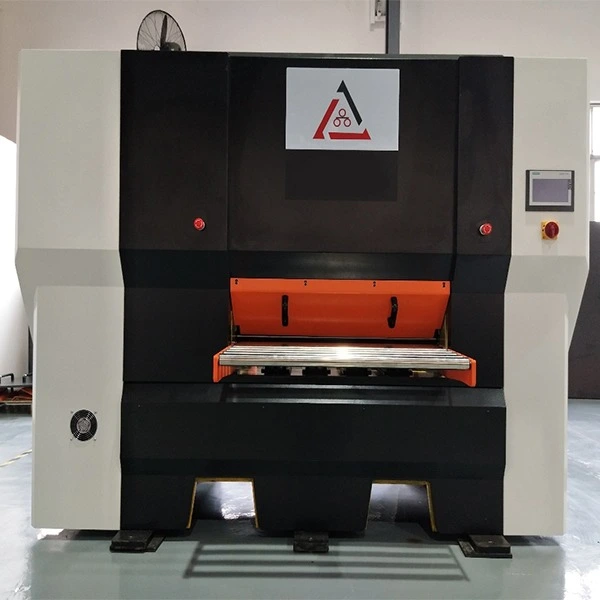

Understanding the Straightener Machine Mechanism
Mechanical Leveling
A Straightener Machine uses a series of staggered rollers to subject the metal sheet to repeated elastic-plastic bending. This process extends the material fibers beyond their yield point to equalize length differences.
The Bauschinger Effect
Our technology leverages the Bauschinger effect, which reduces the yield strength during reverse loading, allowing for more efficient stress relief without damaging the material surface.
Internal Stress Release
By releasing internal stress, the leveled parts remain flat after subsequent processes like laser cutting or punching, ensuring perfect fit-up.
Strategic Solutions: Selecting the Right Series for Your Needs
XINLIJIN offers a comprehensive range of leveling equipment tailored to specific material characteristics. Choosing the correct Straightener Machine depends primarily on the thickness and yield strength of the workpiece.
1. Precision Solutions for Thin Materials
For ultra-thin applications, our 20 Series and 30 Series are engineered for materials ranging from 0.3mm to 2.0mm. These machines utilize smaller roller diameters and tighter pitch to ensure that even the slightest waviness is eliminated with high precision.
2. Heavy-Duty Industrial Leveling
When dealing with structural plates, the 100 Series and 120 Series handle thicknesses up to 15mm. These machines are built with robust frames and high-torque drives to overcome the immense resistance of thick steel plates.
3. Structural Optimization: 4-High vs 6-High
Understanding the difference between 4-high and 6-high structures is crucial. While 4-high machines are excellent for general leveling, 6-high configurations add intermediate rollers to prevent "shadowing" and provide the highest surface protection for sensitive materials.
Technical Selection Checklist
- Material Thickness: Range from 0.3mm to 15mm.
- Yield Strength: Standard carbon steel to high-strength alloys.
- Surface Sensitivity: Need for 6-high protection?
- Automation Level: Manual, NC, or full CNC control?
Why Manufacturers Trust XINLIJIN
With over a decade of specialized experience in metal leveling, XINLIJIN has revolutionized how factories approach sheet metal flatness.
Precision Engineering
Our Straightener Machine units are manufactured under strict ISO quality standards. Every roller is precision ground and hardened to ensure longevity and consistent performance under high-stress conditions.
Proven Industry Expertise
We serve diverse industries including automotive, aerospace, and mesh sheet production. Our mesh sheet industry solutions demonstrate our ability to handle complex, perforated materials without deformation.
Frequently Asked Questions
How do I know if I need a 4-high or 6-high machine?
4-high machines are standard for most industrial applications. If you are processing high-gloss or sensitive materials where roller marks must be avoided, a 6-high structure provides additional support rollers to minimize deflection and surface contact stress.
Can the Straightener Machine handle high-strength steel?
Yes, but it requires a machine with specifically designed roller diameters and higher motor power. XINLIJIN provides custom configurations for high-tensile materials to ensure effective plastic deformation.
What is the typical lead time for a custom machine?
Depending on the series and customization requirements (such as CNC integration), lead times range from 8 to 12 weeks. We also maintain stock for standard 20 and 30 series machines.
Do you provide on-site installation and training?
Absolutely. XINLIJIN offers comprehensive technical support, including installation, operator training, and maintenance consulting to ensure your Straightener Machine operates at peak efficiency.
Ready to Enhance Your Production Quality?
Contact our technical experts today for a free consultation and material test report.
