Choosing the Right Straightening Machine for Heavy Gauge Metals
Discover how XINLIJIN precision technology transforms heavy metal fabrication through advanced stress relief and flatness control.
The Challenge of Heavy Gauge Metal Processing
In the modern industrial landscape, working with heavy gauge metals presents a unique set of challenges that can derail production efficiency. From internal stresses trapped during the milling process to the persistent "coil set" found in thick plates, achieving a perfectly flat surface is often a significant hurdle for fabricators. When these materials are not properly handled, they can cause damage to downstream equipment like laser cutters and press brakes, leading to costly downtime and wasted material.
Are you struggling with inconsistent flatness in your heavy-duty sheet metal production? Does your current setup fail to meet the tight tolerances required for high-end construction or automotive components? This guide serves as a comprehensive tool to help you navigate the complexities of selecting a high-performance Straightening Machine. By the end of this article, you will understand the technical nuances of heavy gauge leveling and how to choose a solution that ensures long-term ROI.

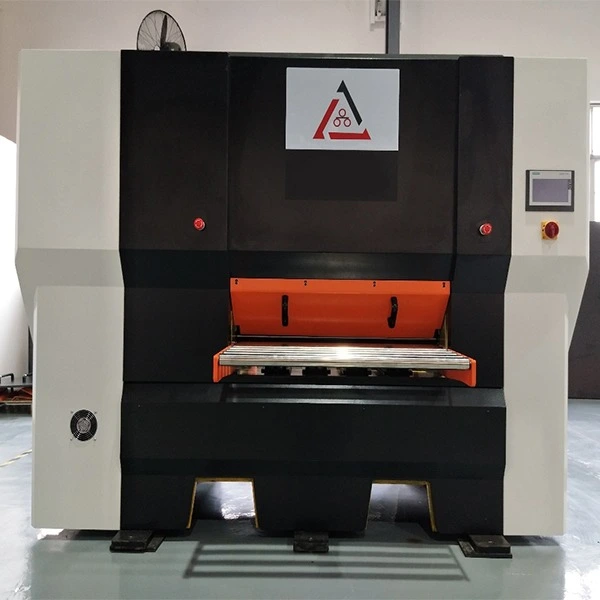

Understanding the Foundation: What is a Straightening Machine?
A Straightening Machine is not merely a piece of equipment; it is a precision instrument designed to eliminate deformities in metal by applying controlled mechanical pressure through a series of rollers. Unlike basic flattening tools, a professional roller leveler machine works on the principle of the Bauschinger effect.
By subjecting the metal to alternating bends, the machine stretches the material past its yield point, effectively "resetting" the molecular structure and releasing internal stresses. For heavy gauge materials (ranging from 3.0mm to over 15.0mm), this process requires immense force and highly durable roller configurations to prevent machine deflection.
Internal Stress Relief: Critical for precision cutting.
Deep Dive: XINLIJIN Solutions for Thick Materials
Choosing the right series depends entirely on your material thickness and yield strength. XINLIJIN has developed specialized series to cater to every industrial need.
80 Series
Designed for materials between 2.0mm and 8.0mm. The 80 Series balances speed and power, making it ideal for general manufacturing and medium-duty construction components.
100 Series
Focusing on 3.0mm to 12.0mm thickness, the 100 Series utilizes larger roller diameters to handle increased resistance without sacrificing precision.
120 Series
The heavy-weight champion. Capable of processing 5.0mm to 15.0mm, the 120 Series is built for structural steel and heavy machinery industries.
The 4-High vs. 6-High Configuration
One of the most frequent questions our engineers receive at XINLIJIN is the difference between machine structures. Selecting the wrong design for heavy gauge metals can lead to surface marking or insufficient leveling.
4-High Structure
Features work rolls supported by backup rolls. This is the standard for most heavy gauge Straightening Machine applications where the primary goal is robust leveling of thick plates.
6-High Structure
Includes an intermediate roll layer. This design is superior for high-quality surface requirements, as it prevents the backup rolls from leaving "pressure marks" on the material. Learn more about 4-high vs 6-high differences here.
Why Global Leaders Trust XINLIJIN
With decades of experience serving the mesh sheet, automotive, and raw material industries, XINLIJIN has established itself as a premier straightening machine manufacturer. Our commitment to quality is backed by rigorous testing and a deep understanding of metal behavior.
Certified Quality
CE and ISO compliant manufacturing processes.
Global Support
Technical assistance and parts available worldwide.
Free Testing
Send your materials to us for a free leveling test.
Frequently Asked Questions
How do I know which Straightening Machine is right for my thickness?
Selection depends on the "Power Range" of the rollers. As a rule of thumb, always choose a machine where your most common material thickness sits in the middle of the machine's range to ensure optimal flatness improvement.
Can one machine handle both very thin and very thick metals?
While some machines have broad ranges, the physics of roller diameters means a machine optimized for 15.0mm will not provide precision results on 0.5mm foil. We recommend dedicated series for vastly different material types.
What is the typical lead time for a custom XINLIJIN system?
Standard models are often in stock, while custom-engineered systems typically have a lead time of 8-12 weeks, including testing and calibration.
Ready to Elevate Your Production Quality?
Contact our technical engineers today for a free consultation and customized quote.
