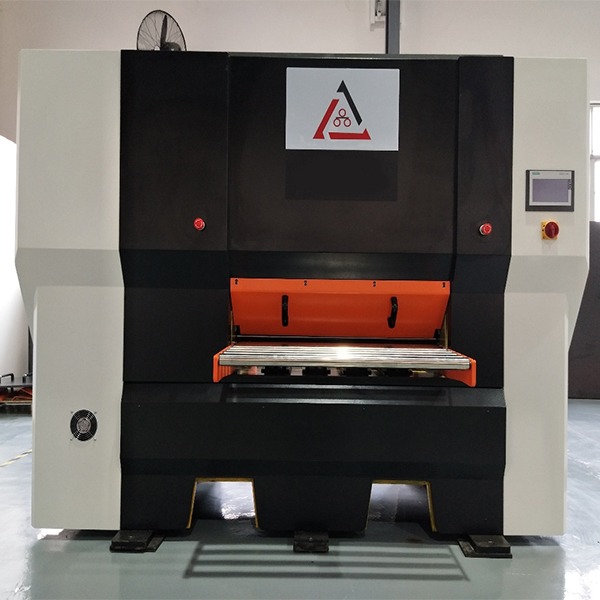

Four Fold or Four High: Optimizing Roller Configuration for Sheet Accuracy
Mastering the science of material flatness through advanced mechanical configurations and precision engineering at XINLIJIN.
The Challenge of Modern Metal Fabrication
In the high-precision world of metal processing, manufacturers often face a silent but destructive enemy: internal stress. Whether you are dealing with thin sheets or heavy plates, material deformation—manifesting as coil set, crossbow, or edge wave—can halt production lines and lead to costly waste. Are your current processes struggling to achieve the micron-level flatness required for laser cutting or automated assembly?
The core of the solution lies in the roller configuration of your leveling equipment. Understanding the Four Fold Or Four High mechanical structure is essential for any professional looking to upgrade their production efficiency. This guide will provide a deep dive into how XINLIJIN utilizes this technology to transform raw metal into perfectly flat, stress-free workpieces.
Understanding the Four Fold Or Four High Concept
To the uninitiated, the term Four Fold Or Four High (often referred to as a 4-high configuration) describes the vertical arrangement of rollers within a leveling machine. In this specific design, the machine features two layers of work rolls that directly contact the material, supported by two layers of backup rolls.
How It Works
The primary function of the work rolls is to subject the metal sheet to alternating bends. However, as pressure increases to straighten thicker or harder materials, long work rolls tend to deflect or "bow." This is where the backup rolls become critical. By providing a rigid support structure, the backup rolls ensure that the work rolls remain perfectly straight under intense pressure, maintaining consistent leveling force across the entire width of the sheet.
This Four Fold Or Four High setup is the industry standard for achieving high-quality results in general sheet metal applications, balancing cost-effectiveness with professional-grade precision.
Deep Dive: Why Configuration Matters for Your Material
The Bauschinger Effect
A key scientific principle in metal straightening is the Bauschinger effect. When we level metal using a Four Fold Or Four High machine, we are not just flattening it visually; we are changing its internal stress state. By applying alternating tension and compression, we "reset" the material's memory, ensuring it stays flat even after subsequent processing like punching or bending.
Application Specifics
While the Four Fold Or Four High configuration is versatile, choosing the right series is vital. At XINLIJIN, we offer specialized machines tailored to your material thickness:
The XINLIJIN Advantage: Beyond the Rollers
In our experience serving hundreds of global clients, we have learned that a machine is only as good as its control system and structural integrity. XINLIJIN does not just provide a Four Fold Or Four High leveler; we provide a complete internal stress release solution.
Why Choose XINLIJIN?
- High-Precision CNC Control: Our CNC leveling machines allow for digital management of roller gaps, ensuring repeatable accuracy within 0.01mm.
- Customization: Whether you need a standalone unit or a full decoiler-straightener-feeder line, we adapt to your floor plan.
- Durability: Using high-alloy steel for rollers and reinforced frames, our machines are built for 24/7 industrial environments.
Frequently Asked Questions
Q: What is the main difference between 4-high and 6-high levelers?
A: A 4-high (Four Fold Or Four High) machine uses work rolls and backup rolls. A 6-high machine adds a layer of intermediate rolls to further prevent work roll deformation, typically used for high-surface-quality materials like stainless steel to prevent marking.
Q: Can XINLIJIN machines handle high-strength steel?
A: Yes. Our machines are designed to overcome the high yield points of modern alloys through optimized roller diameters and spacing, effectively releasing internal stress.
Q: Do you offer technical support for international customers?
A: Absolutely. We provide remote diagnostic support and can dispatch engineers for on-site installation and training to ensure your team maximizes the machine's potential.
Ready to Achieve Perfect Flatness?
Contact our technical experts today for a free consultation and customized quote for your Four Fold Or Four High solution.
