How to Select the Right Straightener Machine for Your Coil Width, Thickness, and Material Type.
In the world of high-precision metal stamping and fabrication, achieving absolute flatness is not just a preference—it is a requirement for operational excellence.
Precision Engineering Starts with the Perfect Straightener Machine
Manufacturers often face the frustrating challenge of material "memory," where metal coils retain their curved shape even after being decoiled. This internal stress leads to defects, tool wear, and production delays. Are you struggling with inconsistent material flatness that compromises your finished product quality? If your production line is plagued by coil set or crossbow issues, the solution lies in selecting the appropriate Straightener Machine.
At XINLIJIN, we understand that a one-size-fits-all approach does not work in sheet metal processing. Choosing the right equipment requires a deep understanding of your material's physical properties. This guide will provide you with a comprehensive framework to evaluate your needs and select a system that ensures maximum efficiency and precision.
What you will learn in this guide:
Fundamental principles of roller leveling and straightening.
Understanding the Mechanics: What is a Straightener Machine?

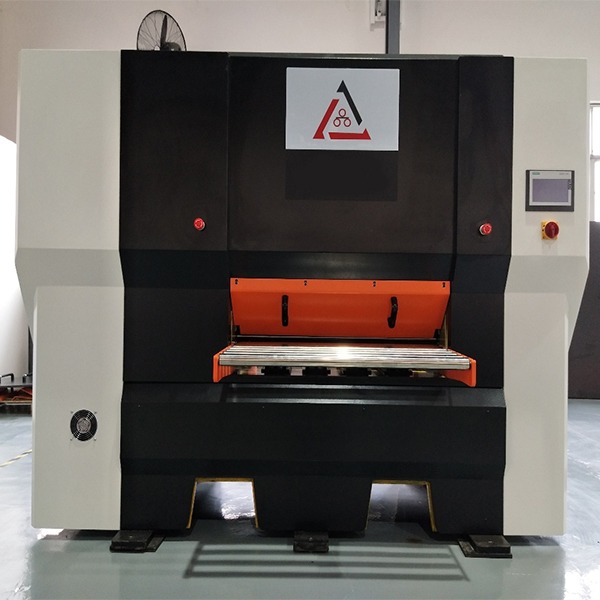

A Straightener Machine is a critical piece of industrial equipment designed to remove coil set and other deformities from metal strips. The process involves passing the material through a series of staggered rollers. By subjecting the metal to repeated cyclic bending, the machine stretches the fibers of the material beyond its yield point, effectively "resetting" its internal structure.
The science behind this process is known as the Bauschinger effect. When the material is bent back and forth, the internal stresses are redistributed and eventually minimized. This results in a flat, stable sheet that is ready for secondary operations like laser cutting, punching, or forming.
Different applications require different configurations. For instance, a 4-high or 6-high leveler machine offers varying degrees of precision and surface protection, depending on the sensitivity of the material.
Strategic Selection: Matching the Machine to Your Specifications
To ensure the longevity of your equipment and the quality of your output, you must evaluate three primary factors: Width, Thickness, and Material Type.
1. Material Thickness and Roller Diameter
The thickness of your material dictates the diameter and pitch of the leveling rollers. A Straightener Machine with large rollers cannot effectively level thin gauge materials, while small rollers will deflect and fail under the pressure of thick plates.
| XINLIJIN Series | Thickness Range (mm) | Best Application |
|---|---|---|
| 20 Series | 0.3 mm – 1.5 mm | Electronic components, thin sheet precision. |
| 50 Series | 1.0 mm – 4.0 mm | Automotive parts, general metal fabrication. |
| 120 Series | 5.0 mm – 15.0 mm | Heavy industrial plates, construction machinery. |
2. Coil Width and Structural Rigidity
The width of your coil determines the necessary frame strength of the Straightener Machine. As the width increases, the risk of roller deflection grows. High-precision operations require machines with robust support rollers (backup rollers) to prevent the leveling rollers from bowing during the straightening process. XINLIJIN machines are engineered with optimized backup roller configurations to maintain consistent pressure across the entire width of the material.
3. Material Type and Yield Strength
Stainless steel, cold-rolled steel, aluminum, and high-strength alloys all behave differently. High-strength materials require more force to reach the plastic deformation zone. This means you need a Straightener Machine with higher torque and more rigid housing. Understanding your material’s yield strength is the most critical step in avoiding equipment overload.
Why XINLIJIN is Your Trusted Partner in Precision
With years of experience as a premier straightening machine manufacturer, XINLIJIN has revolutionized the way internal stresses are handled in sheet metal. Our technology focuses on more than just surface appearance; we focus on structural integrity.
CNC Intelligence
Our CNC leveling machines allow for automated adjustments, reducing human error and increasing setup speed.
Stress Release
XINLIJIN specializes in internal stress released solutions that prevent material spring-back after processing.
Global Standards
Every Straightener Machine we produce undergoes rigorous testing to meet international quality and safety certifications.
Frequently Asked Questions (FAQ)
Q: How do I know if I need a 4-high or 6-high Straightener Machine?
A: A 4-high machine is excellent for general leveling where high pressure is needed. A 6-high machine adds an extra layer of intermediate rollers, which protects the surface of sensitive materials (like polished stainless steel or aluminum) from marking and ensures more uniform pressure distribution.
Q: Can one machine handle all material thicknesses?
A: No. Every Straightener Machine has a specific physical range. Attempting to level material that is too thick can damage the rollers, while material that is too thin will not receive enough plastic deformation to become flat.
Q: Does XINLIJIN offer customization for specific production lines?
A: Yes. We provide tailored solutions including integrated decoiler-straightener-feeder systems to optimize your factory floor space and workflow efficiency.
Ready to Optimize Your Flatness Control?
Stop guessing and start measuring. Contact the XINLIJIN technical team today for a free consultation on the best Straightener Machine for your specific application.
