Why a Four Fold or Four High Roller Configuration Delivers Superior Improve Flatness Results.

Introduction: The Challenge of Material Deformation

In the modern metalworking industry, manufacturers frequently encounter the frustration of "oil canning," edge waves, or internal stresses that compromise the quality of sheet metal. These defects not only hinder subsequent welding and assembly processes but also lead to high rejection rates and increased operational costs. The core question for production managers remains: How can we achieve consistent, repeatable, and high-quality flatness across various material thicknesses?

The answer lies in the mechanical architecture of the leveling equipment. Specifically, utilizing a Four Fold Or Four High roller configuration has become the industry standard for those seeking to maximize precision. In this comprehensive guide, we will explore how XINLIJIN leverages this advanced design to help you eliminate internal stress and achieve the ultimate surface quality.

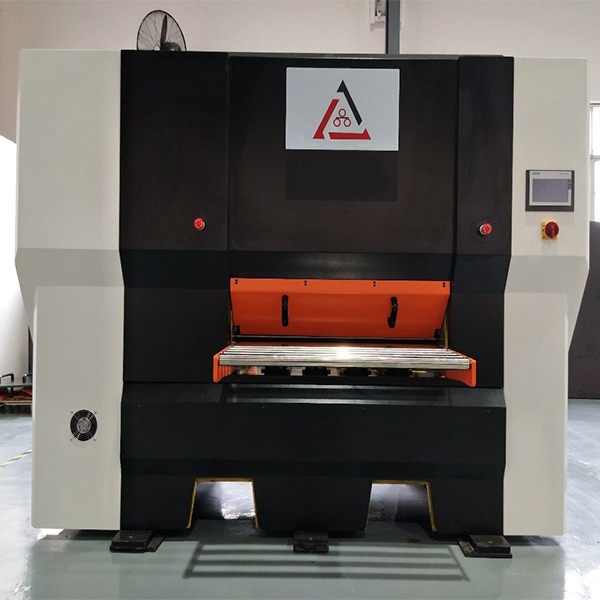

What is a Four Fold Or Four High Configuration?

To understand the value of this technology, we must define the terminology. A Four Fold Or Four High leveler refers to a machine structure where the work rollers are supported by an additional layer of backup rollers. This creates four distinct horizontal planes (layers) of rollers within the machine's frame.

Unlike basic two-high machines, where rollers may flex under high pressure, the Four High design ensures that the work rollers remain perfectly rigid. This structural integrity is the secret behind the ability to improve flatness in materials ranging from ultra-thin foils to heavy plates.

Deep Dive: How the Four High Configuration Operates

The Four Fold Or Four High leveling process relies on the principle of plastic deformation. As the sheet metal passes through the interlocking rollers, it is subjected to a series of alternating bends. By precisely controlling the entry and exit gaps, the machine "stretches" the shorter fibers of the material to match the longer ones, effectively neutralizing internal stresses.

The XINLIJIN Advantage: Precision for Every Industry

At XINLIJIN, we have spent over a decade perfecting our roller configurations. Our machines are designed not just to flatten, but to transform the structural integrity of your materials. Whether you are in the automotive, aerospace, or mesh sheet industry, our Four Fold Or Four High systems provide the stability required for high-volume production.

• 20 Series: Ideal for ultra-thin materials (0.3mm – 1.5mm) requiring delicate precision.
• 60 Series: Versatile performance for mid-range thickness (1.0mm – 6.0mm).
• 120 Series: Heavy-duty power for thick plates (5.0mm – 15.0mm).
